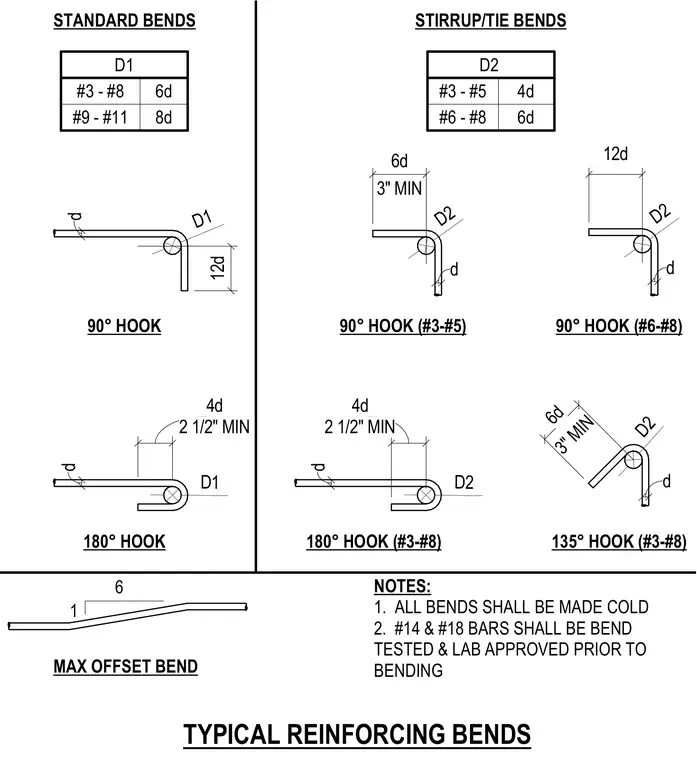

All reinforcement bends must be made cold, and number fourteen and eighteen bars require bend testing and laboratory approval prior to bending. Standard ninety degree hooks for number three through number eight bars use a diameter D1 with a twelve bar diameter extension and a three inch minimum. Standard one hundred eighty degree hooks use a diameter D1 with a four bar diameter extension and a two and a half inch minimum. Stirrup and tie ninety degree hooks for number three through number five bars use a diameter D2 with a six bar diameter extension and a three inch minimum, while number six through number eight bars use a twelve bar diameter extension. Stirrup and tie one hundred eighty degree hooks use a diameter D2 with a four bar diameter extension and a two and a half inch minimum. Stirrup and tie one hundred thirty-five degree hooks use a diameter D2 with a six bar diameter extension and a three inch minimum. Maximum offset bends maintain a six-to-one slope ratio.
NOTES: 1. ALL BENDS SHALL BE MADE COLD 2. #14 & #18 BARS SHALL BE BEND TESTED & LAB APPROVED PRIOR TO BENDING STANDARD BENDS 90° HOOK (#3-#5) d 3" MIN 6d TYPICAL REINFORCING BENDS STIRRUP/TIE BENDS 180° HOOK (#3-#8) D2 1 6 MAX OFFSET BEND D1 #3 - #8 6d #9 - #11 8d 90° HOOK (#6-#8) d 12d D2 135° HOOK (#3-#8) d 3" MIN 6d D2 90° HOOK d 12d D1 180° HOOK d 2 1/2" MIN 4d D1 #3 - #5 4d #6 - #8 6d D2 d D2 2 1/2" MIN 4d
