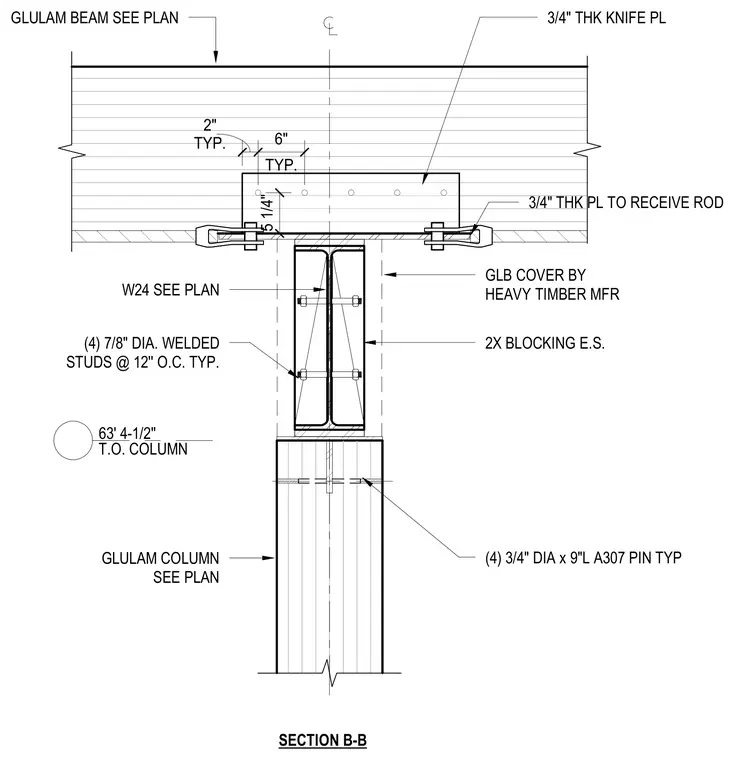

A glulam beam bears on a W24 steel beam supported by a glulam column below. A three-quarter-inch thick knife plate is inserted into the glulam beam, secured by four three-quarter-inch diameter by nine-inch long ASTM A307 pins. A three-quarter-inch thick plate receives rods connected to the assembly. Two-by blocking is provided on each side, and four seven-eighth-inch diameter welded studs are spaced at twelve inches on center. A glulam cover is supplied by the heavy timber manufacturer.
GLULAM BEAM SEE PLAN W24 SEE PLAN GLULAM COLUMN SEE PLAN 2X BLOCKING E.S. (4) 7/8" DIA. WELDED STUDS @ 12'' O.C. TYP. GLB COVER BY HEAVY TIMBER MFR (4) 3/4" DIA x 9"L A307 PIN TYP 63' 4-1/2'' T.O. COLUMN 5 1/4" TYP. 2" TYP. 6" 3/4" THK PL TO RECEIVE ROD 3/4" THK KNIFE PL SECTION B-B
