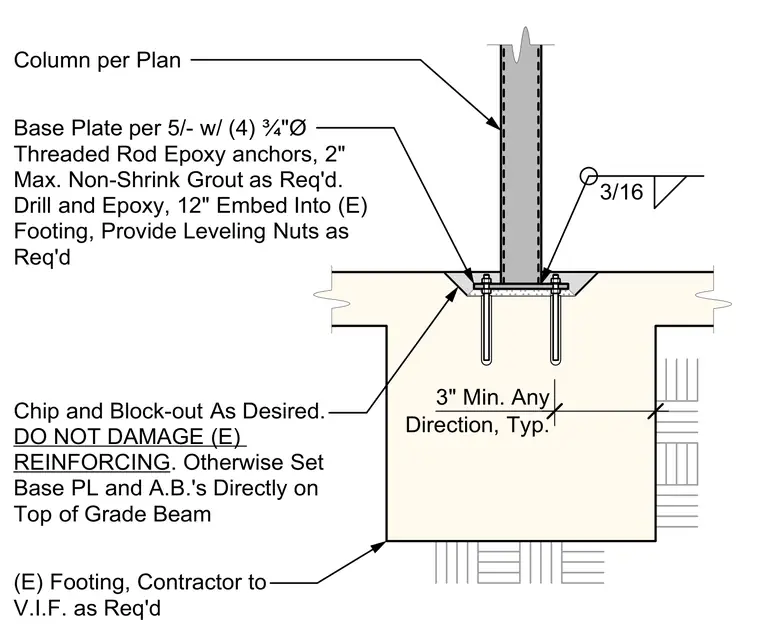

A column is secured to an existing concrete footing via a base plate and four three-quarters-inch-diameter threaded rod epoxy anchors. The anchors are drilled and epoxied with a twelve-inch embedment into the existing footing, utilizing leveling nuts as required. A two-inch maximum non-shrink grout pack is placed beneath the base plate, set within a chipped block-out while avoiding damage to existing reinforcing steel. The column is welded to the base plate with a three-sixteenths-inch fillet weld.
Chip and Block-out As Desired. DO NOT DAMAGE (E) REINFORCING . Otherwise Set Base PL and A.B.'s Directly on Top of Grade Beam Base Plate per 5/- w/ (4) ¾ "Ø Threaded Rod Epoxy anchors, 2" Max. Non-Shrink Grout as Req'd. Drill and Epoxy, 12" Embed Into (E) Footing, Provide Leveling Nuts as Req'd 3/16 Column per Plan (E) Footing, Contractor to V.I.F. as Req'd 3" Min. Any Direction, Typ.
