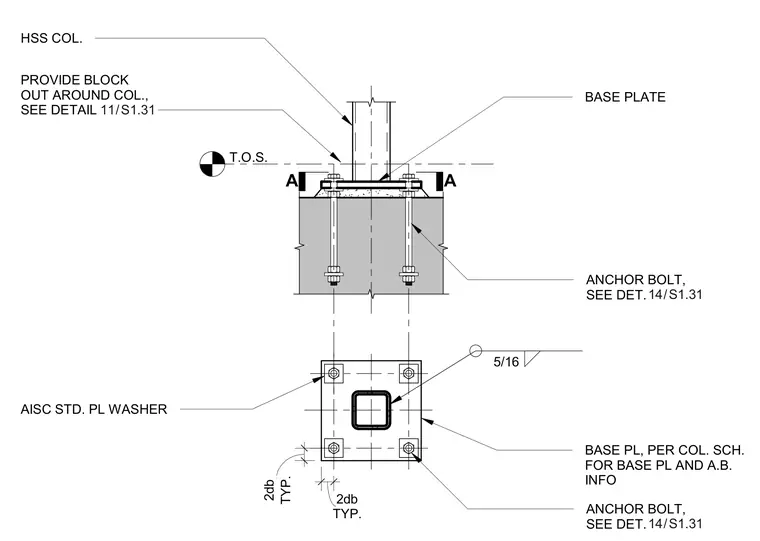

An HSS column connects to a steel base plate anchored into a concrete support. Anchor bolts with AISC standard plate washers secure the base plate at a typical distance of two bolt diameters from the edges. A five-sixteenths inch fillet weld joins the hollow structural section column to the base plate. A block out is provided around the column as referenced in detail eleven on sheet S1.31, while base plate and anchor bolt sizes follow the column schedule.
BASE PLATE HSS COL. A A TYP. 2db 5/16 PROVIDE BLOCK OUT AROUND COL., SEE DETAIL / 11 S1.31 T.O.S. TYP. 2db BASE PL, PER COL. SCH. FOR BASE PL AND A.B. INFO AISC STD. PL WASHER ANCHOR BOLT, SEE DET. / 14 S1.31 ANCHOR BOLT, SEE DET. / 14 S1.31
