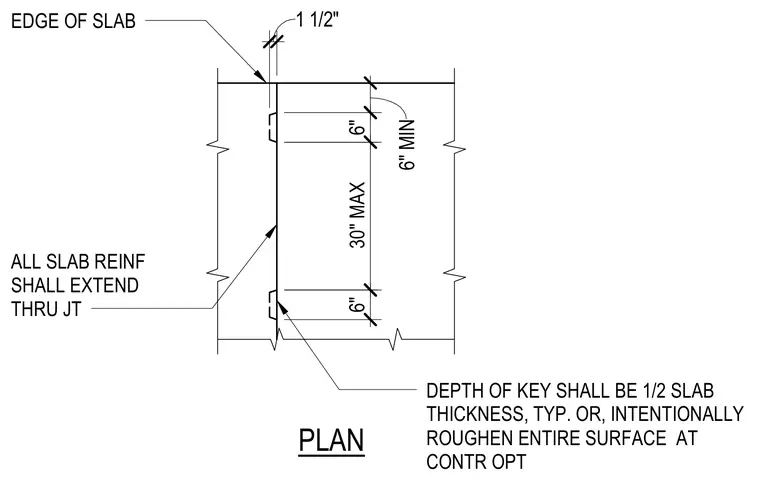

A concrete slab construction joint features a formed keyway with a depth equal to half the slab thickness typical, or an intentionally roughened surface at the contractor's option. All slab reinforcement extends continuously through the joint. Spacing dimensions include a six-inch minimum dimension and a thirty-inch maximum dimension, with a one and one-half inch offset from the edge of the slab.
6" 30" MAX 6" 6" MIN EDGE OF SLAB ALL SLAB REINF SHALL EXTEND THRU JT DEPTH OF KEY SHALL BE 1/2 SLAB THICKNESS, TYP. OR, INTENTIONALLY ROUGHEN ENTIRE SURFACE AT CONTR OPT PLAN 1 1/2" 30" MAX
