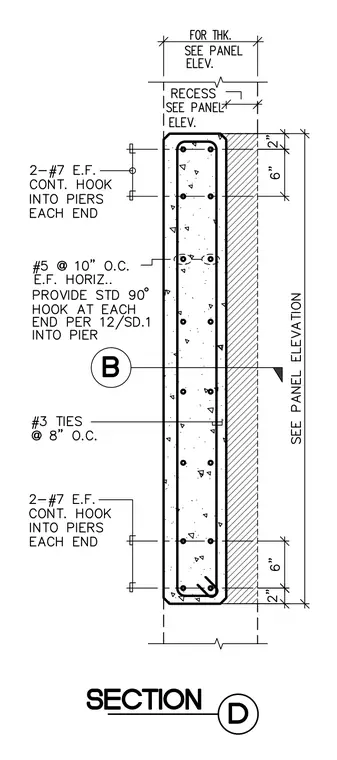

This structural detail shows a cross-section of a precast concrete wall panel with continuous reinforcing and tie arrangements. The assembly is reinforced vertically with two number seven bars each face, featuring continuous hooks into the piers at each end. Horizontal reinforcement consists of number five bars at ten inches on center each face, with standard ninety-degree hooks at each end into the pier. Number three ties are spaced at eight inches on center. The panel includes specified recesses and thicknesses per the panel elevation.
