Typical Interior Concrete Tilt-Up Wall Panel and Steel Column Footing Details

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

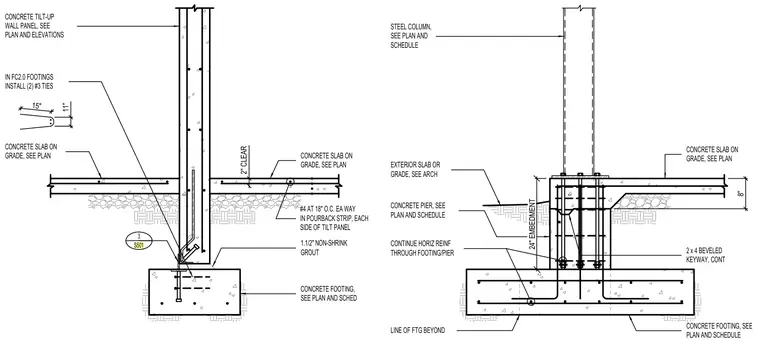

An interior concrete tilt-up wall panel bears on a concrete footing with a one-and-one-half-inch non-shrink grout layer and is tied into the adjacent concrete slab-on-grade using number four reinforcing bars at eighteen inches on center each way within a pourback strip. Two number three ties are installed at the side of the tilt panel inside the footing. A separate steel column base bears on a concrete pier and footing assembly with twenty-four inches of embedment, continuing horizontal reinforcing through the footing and pier with a continuous two-by-four beveled keyway at the slab interface. The exterior slab on grade transitions adjacent to the concrete pier per architectural drawings.
