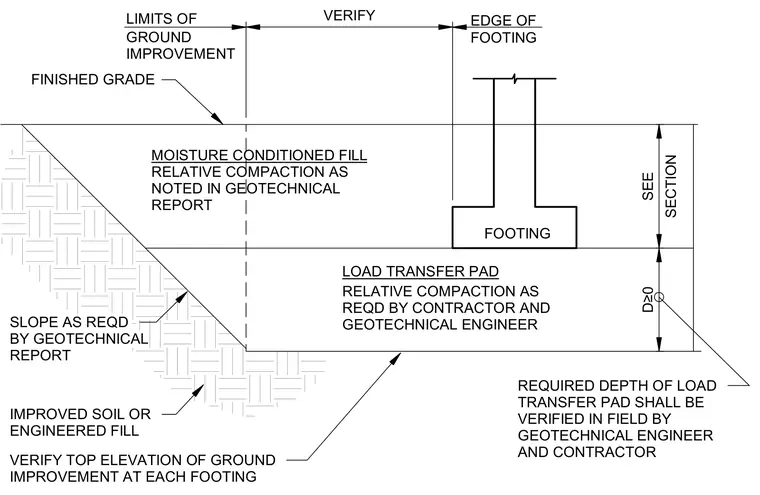

A concrete footing bears upon a load transfer pad constructed over improved soil or engineered fill. The load transfer pad requires relative compaction as requested by the contractor and geotechnical engineer, with a required depth verified in the field. Moisture conditioned fill extends to the limits of ground improvement at the footing edge with relative compaction noted in the geotechnical report. Finished grade slopes as required by the geotechnical report outside the improvement limits.
FOOTING FINISHED GRADE IMPROVED SOIL OR ENGINEERED FILL LOAD TRANSFER PAD RELATIVE COMPACTION AS REQD BY CONTRACTOR AND GEOTECHNICAL ENGINEER FOOTING EDGE OF GROUND IMPROVEMENT LIMITS OF MOISTURE CONDITIONED FILL RELATIVE COMPACTION AS NOTED IN GEOTECHNICAL REPORT REQUIRED DEPTH OF LOAD TRANSFER PAD SHALL BE VERIFIED IN FIELD BY GEOTECHNICAL ENGINEER AND CONTRACTOR SLOPE AS REQD BY GEOTECHNICAL REPORT VERIFY D≥0 SECTION SEE VERIFY TOP ELEVATION OF GROUND IMPROVEMENT AT EACH FOOTING
