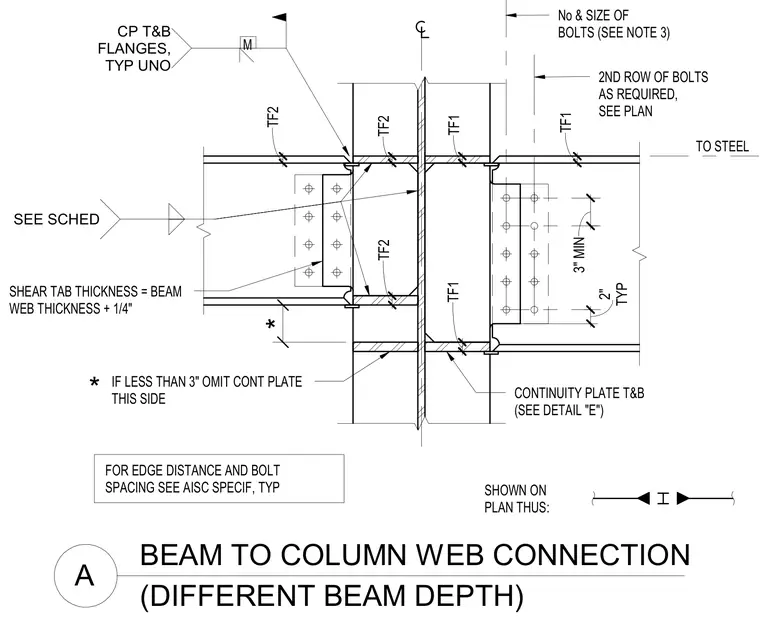

A beam-to-column web connection features different beam depths across the column web centerline. Beams connect via bolted shear tabs where the shear tab thickness equals the beam web thickness plus one quarter inch. Top and bottom continuity plates are aligned with the beam flanges, with specific clearances and edge distances complying with AISC specifications. A second row of bolts is included as required per structural plans. Continuity plates are omitted on one side if the dimension is less than three inches.
BEAM TO COLUMN WEB CONNECTION A (DIFFERENT BEAM DEPTH) FOR EDGE DISTANCE AND BOLT SPACING SEE AISC SPECIF, TYP SHOWN ON PLAN THUS: No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN TO STEEL CONTINUITY PLATE T&B (SEE DETAIL "E") SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" IF LESS THAN 3" OMIT CONT PLATE THIS SIDE * SEE SCHED TF2 TF1 3" MIN TYP 2" TF1 TF2 TF1 TF2 CP T&B FLANGES, TYP UNO M *
