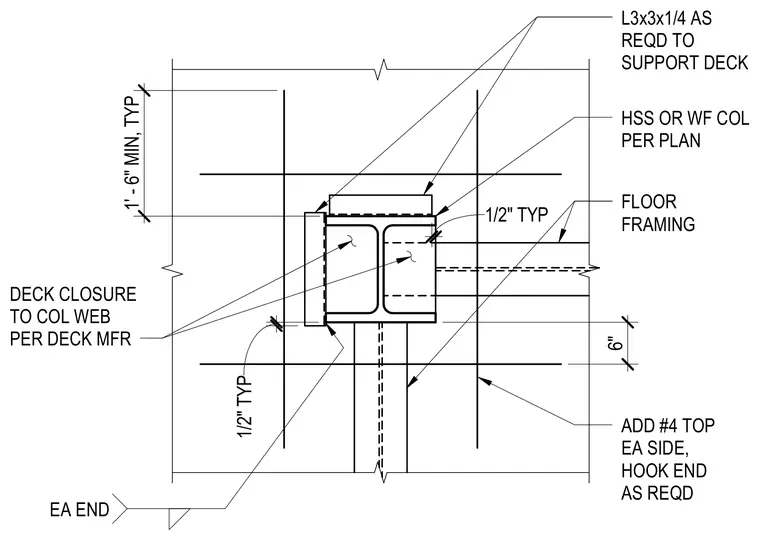

Metal floor deck support framing around a steel column. An angle measuring L3x3x1/4 is provided as required to support the deck. Additional number 4 top reinforcing bars are placed on each side with hook ends as required, maintaining a six-inch typical dimension and a one-foot six-inch minimum clearance. Deck closure to the column web is installed per the deck manufacturer requirements.
1' - 6" MIN, TYP 6" ADD #4 TOP EA SIDE, HOOK END AS REQD HSS OR WF COL PER PLAN FLOOR FRAMING L3x3x1/4 AS REQD TO SUPPORT DECK DECK CLOSURE TO COL WEB PER DECK MFR EA END 1/2" TYP 1/2" TYP
