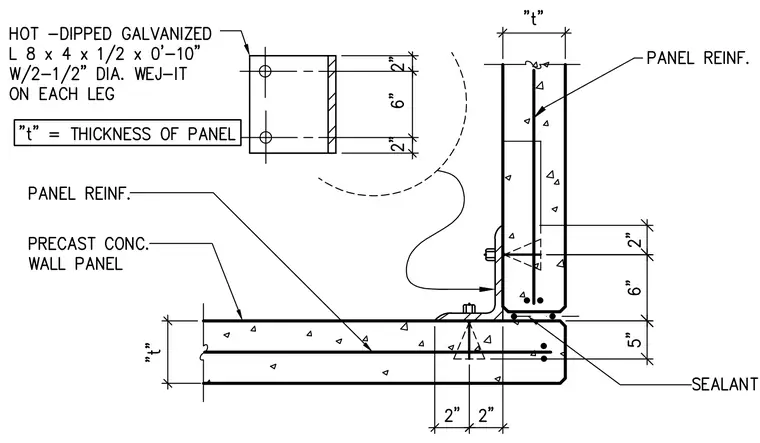

Precast concrete wall panels intersect at a right-angle corner joined by a hot-dipped galvanized 8x4x1/2 inch angle measuring 0 feet 10 inches long. The angle connects to each panel leg using two 1/2 inch diameter Wej-It expansion anchors. Each precast concrete wall panel features internal panel reinforcement and variable thickness "t". A bead of sealant is applied at the external corner joint between the two panels.
