A continuous L7x4x1/4 steel angle ledger supports a metal deck landing at a cross-laminated timber wall. The ledger is fastened to the timber wall with two rows of 0.250-inch-diameter by 3.5-inch partially threaded screws spaced at 4 inches on center, with the rows offset by 2 inches. A closure plate is provided where the metal deck meets the cross-laminated timber wall. At similar conditions, the deck span is rotated 90 degrees.

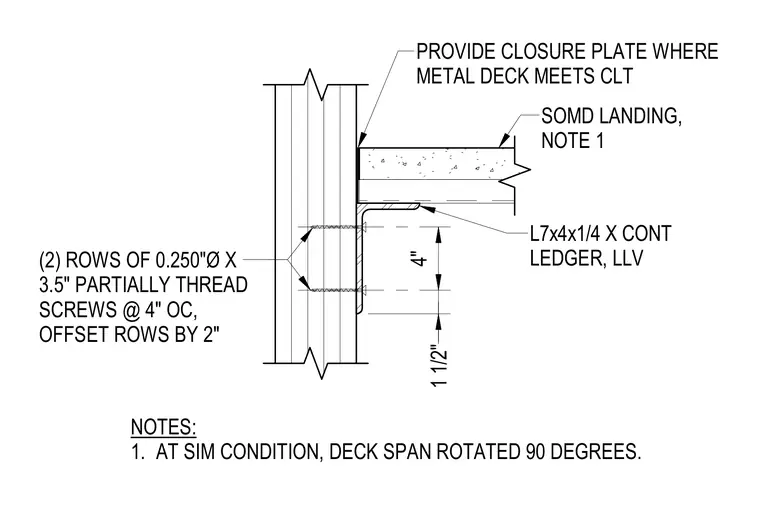

SOMD LANDING, NOTE 1 1 1/2" 4" (2) ROWS OF 0.250"Ø X 3.5" PARTIALLY THREAD SCREWS @ 4" OC, OFFSET ROWS BY 2" L7x4x1/4 X CONT LEDGER, LLV PROVIDE CLOSURE PLATE WHERE METAL DECK MEETS CLT NOTES: 1. AT SIM CONDITION, DECK SPAN ROTATED 90 DEGREES.
