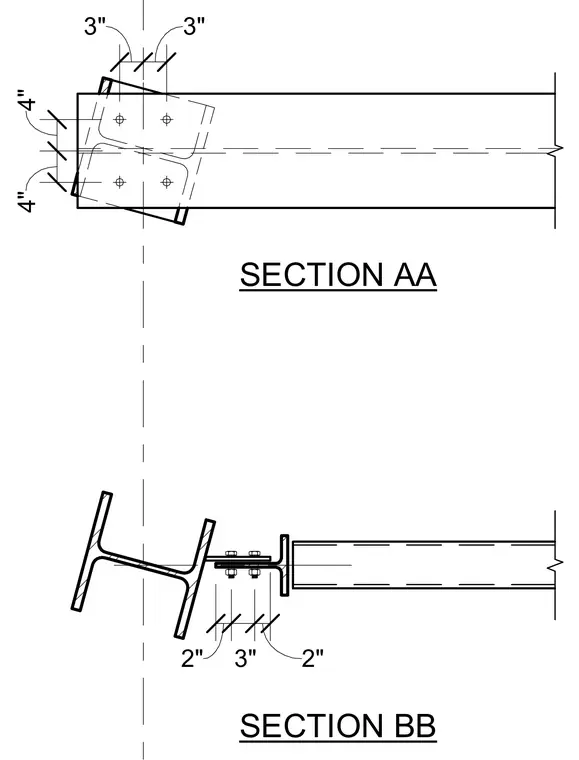

Two cross-sections detail a structural steel framing connection involving intersecting wide flange shapes. Section AA provides a top-down layout with specific dimensional offsets and bolt locations. Section BB provides the elevation view with bolted connections tying the members together across intersecting grid lines.
