Cross-Laminated Timber Shear Wall Foundation Connection

Materials

Elements

Walls Shear Walls Foundations / Footings Expansion / Control Joints Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

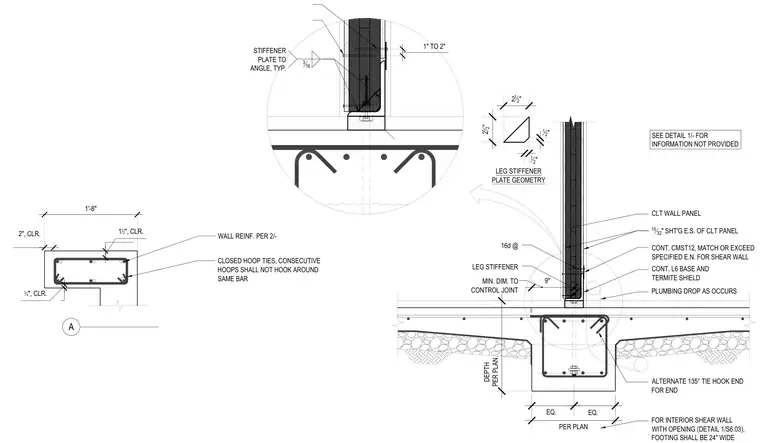

A cross-laminated timber wall panel bears upon a continuous base and termite shield anchored to a concrete footing. The assembly incorporates a continuous angle secured with 16d nails and stiffener plates welded with three-sixteenths-inch fillet welds typically. The concrete footing features closed hoop ties with alternate one-hundred-thirty-five-degree tie hook ends, arranged with specific clearances and a twenty-four-inch width for interior shear walls with openings. Panel sheathing is applied to the exterior side of the cross-laminated timber wall panel, leaving a one-inch to two-inch clearance.
