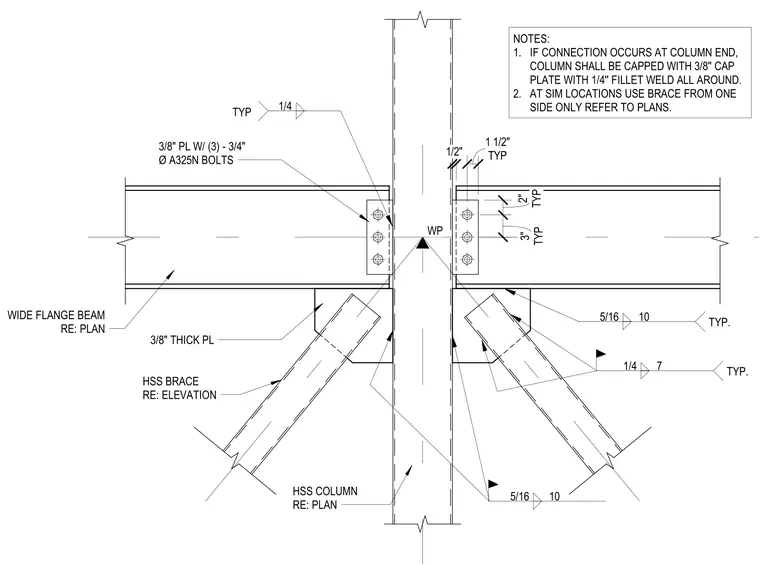

This assembly connects HSS (hollow structural section) bracing members to a central HSS column using three-eighths-inch thick gusset plates. The bracing is welded to the gusset plates with five-sixteenths-inch fillet welds at ten inches typical and one-quarter-inch fillet welds at seven inches typical. Wide flange beams are connected to the column through three-eighths-inch plates using three three-quarter-inch diameter A325N bolts per side. If the connection occurs at the column end, the column must be capped with a three-eighths-inch plate secured by a one-quarter-inch fillet weld all around. At similar locations, bracing should be installed from one side only as indicated on the plans.
Text on the drawing
ELEVATION WP TYP 3" TYP 2" 3/8" PL W/ (3) - 3/4" Ø A325N BOLTS HSS COLUMN RE: PLAN HSS BRACE RE: ELEVATION 5/16 10 TYP. 5/16 10 1/4 7 TYP. NOTES: 1. IF CONNECTION OCCURS AT COLUMN END, COLUMN SHALL BE CAPPED WITH 3/8'' CAP PLATE WITH 1/4'' FILLET WELD ALL AROUND. 2. AT SIM LOCATIONS USE BRACE FROM ONE SIDE ONLY REFER TO PLANS. 3/8" THICK PL WIDE FLANGE BEAM RE: PLAN 1/2" TYP 1 1/2" 1/4 TYP S-43003 1" = 1'-0" 12 VERTICAL BRACING CONNECTION
