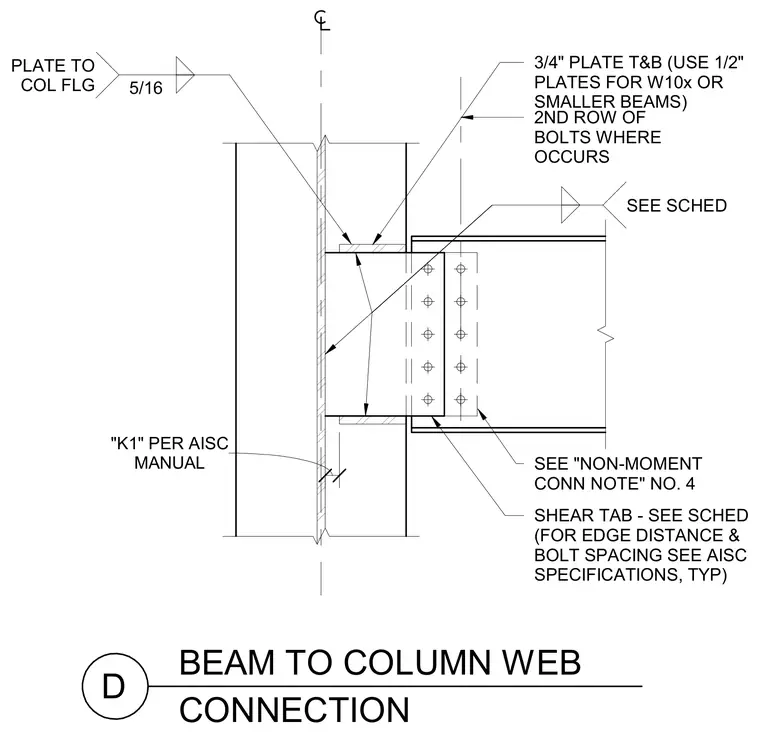

A structural steel beam connects to the web of a column using a shear tab welded to the column flange with a 5/16 inch fillet weld. Three-quarter inch top and bottom plates are welded to the column flange, with one-half inch plates used for W10x or smaller beams. A second row of bolts is provided where applicable, with bolt spacing and edge distance conforming to AISC specifications. Additional connection requirements follow the non-moment connection notes and the AISC manual.
BEAM TO COLUMN WEB D CONNECTION SHEAR TAB - SEE SCHED (FOR EDGE DISTANCE & BOLT SPACING SEE AISC SPECIFICATIONS, TYP) SEE "NON-MOMENT CONN NOTE" NO. 4 3/4" PLATE T&B (USE 1/2" PLATES FOR W10x OR SMALLER BEAMS) SEE SCHED 5/16 PLATE TO COL FLG MANUAL "K1" PER AISC 2ND ROW OF BOLTS WHERE OCCURS
