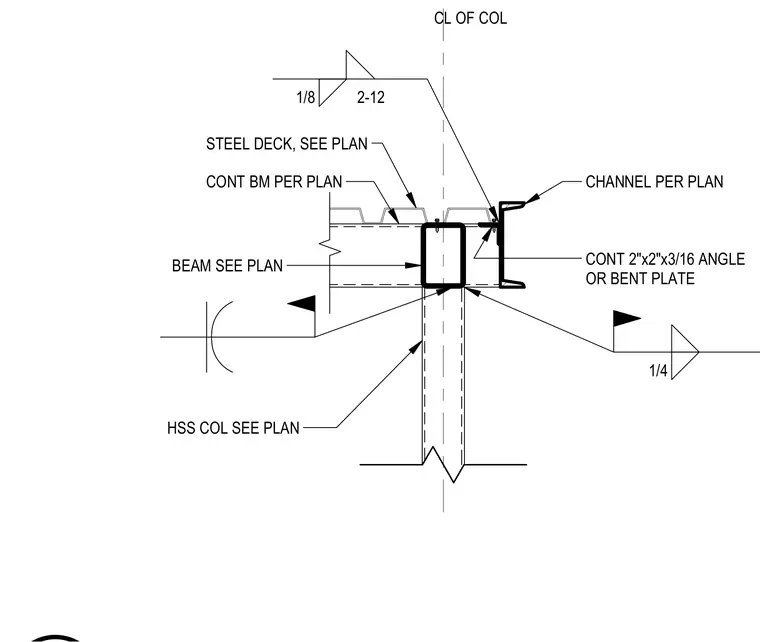

A hollow structural section column supports a continuous beam sized per plan, with steel decking bearing across the assembly. A continuous two-inch by two-inch by three-sixteenth-inch angle or bent plate ties into a channel per plan alongside the column. A one-eighth-inch weld is specified with a two-to-twelve spacing, alongside a one-quarter-inch fillet weld at the lower connection interface. Field welding flags indicate field-welded conditions for the structural steel components.
CHANNEL PER PLAN CONT 2"x2"x3/16 ANGLE OR BENT PLATE HSS COL SEE PLAN 1/8 2-12 CL OF COL CONT BM PER PLAN 1/4 STEEL DECK, SEE PLAN BEAM SEE PLAN
