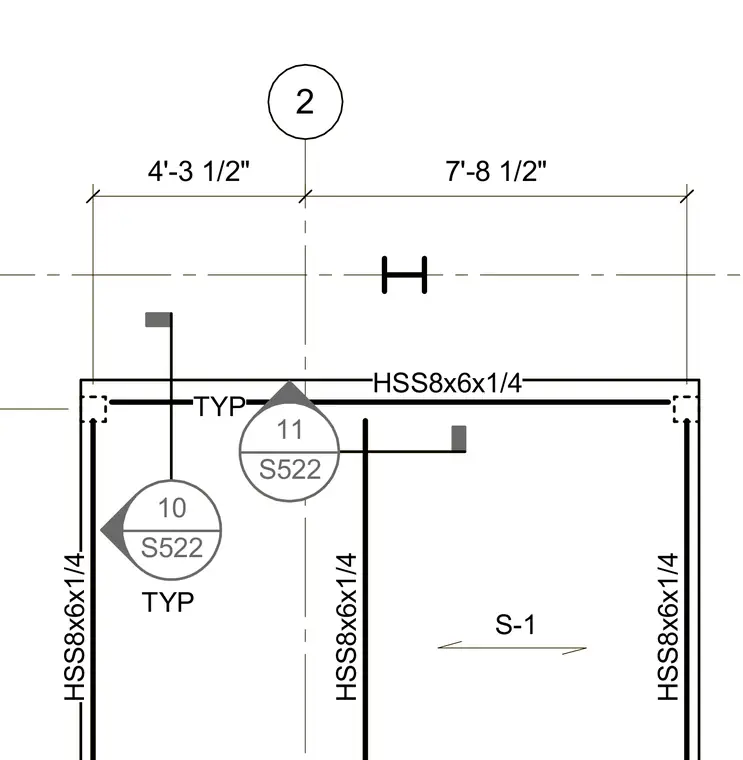

This structural plan detail shows hollow structural section members designated as HSS 8x6x1/4 framing a grid layout. Dimensions of 4'-3 1/2" and 7'-8 1/2" indicate spacing between structural grid lines and member centerlines. Detail reference bubbles direct to related sections on sheet S522.
2 4'-3 1/2" 7'-8 1/2" S-1 HSS8x6x1/4 HSS8x6x1/4 HSS8x6x1/4 HSS8x6x1/4 S522 10 ____ S522 11 ____ TYP TYP 2 4'-3 1/2" 7'-8 1/2" S-1 HSS8x6x1/4 HSS8x6x1/4 HSS8x6x1/4 HSS8x6x1/4 S522 10 ____ S522 11 ____ TYP TYP
