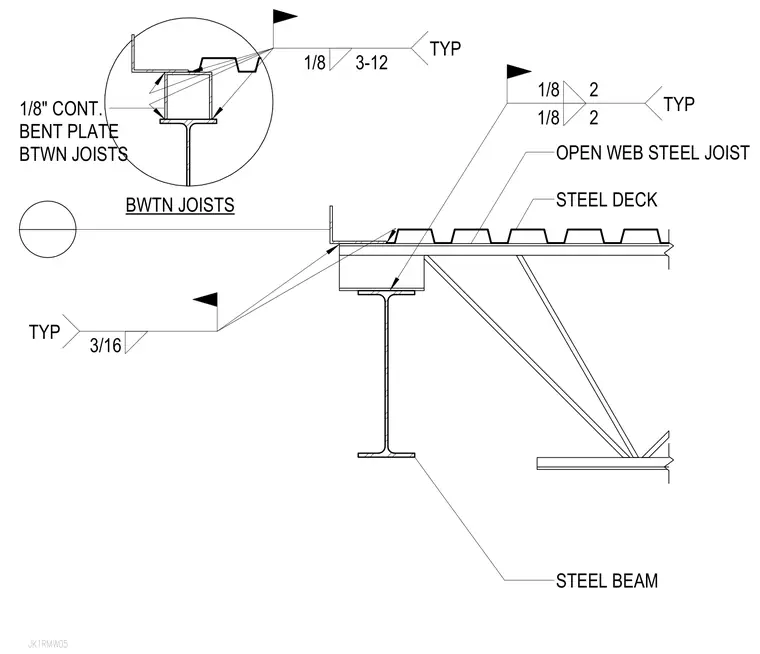

An open web steel joist bears on a supporting steel beam with corrugated steel deck above. A one-eighth-inch continuous bent plate is positioned between the joists, secured with a three-sixteenth-inch fillet weld typically. Additional welds include one-eighth-inch fillet welds with spacing configurations such as two inches or three-twelve inches typical as indicated on the drawing.
JK1RMW05 BWTN JOISTS 1/8" CONT. BENT PLATE BTWN JOISTS STEEL BEAM OPEN WEB STEEL JOIST STEEL DECK 3/16 TYP 1/8 2 1/8 2 TYP 1/8 3-12 TYP
