Structural · S-G9ZER

Welded Connection

Materials

weld

Elements

Bracing Connections / Plates

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

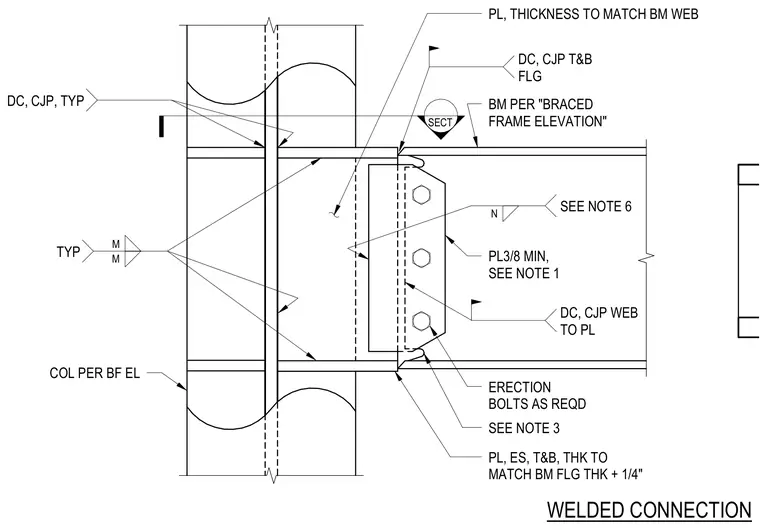

A welded beam-to-column moment connection has the beam top and bottom flanges connected to the column flange using complete joint penetration welds. The beam web connects to a plate with a thickness matching the beam web, secured with complete joint penetration welds and erection bolts as required. Additional plates at the top and bottom of the beam feature a thickness matching the beam flange thickness plus one-quarter inch. All welds and plate sizes are detailed per the braced frame elevation and associated notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
