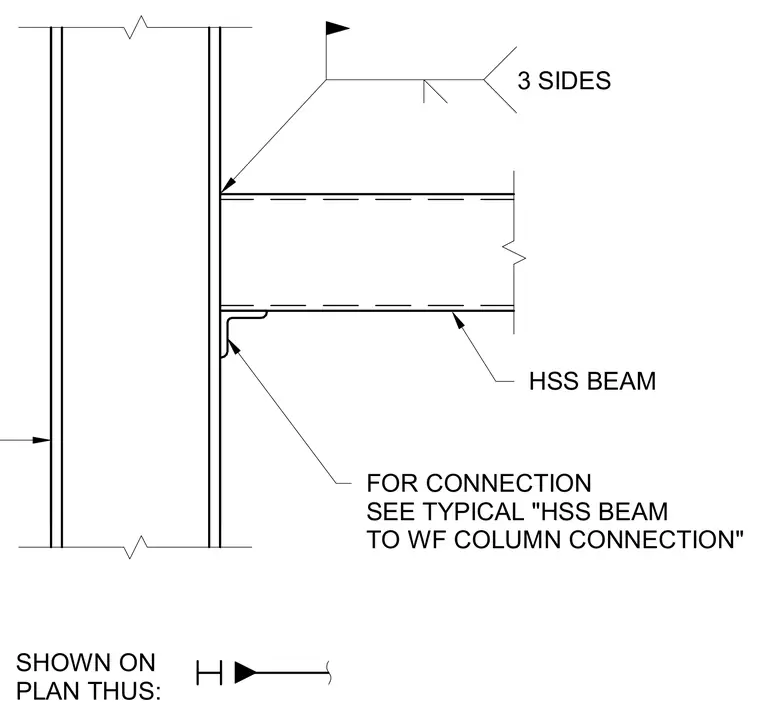

A hollow structural section beam frames into a wide flange steel column using a supporting seat angle beneath the bottom flange. The top flange of the hollow structural section beam is welded to the wide flange column with a field weld specified around three sides. The connection assembly references a typical structural detail for the mating configuration and indicates the representation used on structural plans.
SHOWN ON PLAN THUS: HSS BEAM FOR CONNECTION SEE TYPICAL "HSS BEAM TO WF COLUMN CONNECTION" 3 SIDES
