Structural · S-G9DNQ

Concrete Slab Depression and Drain Detail at Steel Deck

Materials

Concrete Steel Glass / Glazing

Elements

Beams Floors / Slabs Decks Arches Drainage Reinforcing

Connections

Shear Stud / Composite

About this detail

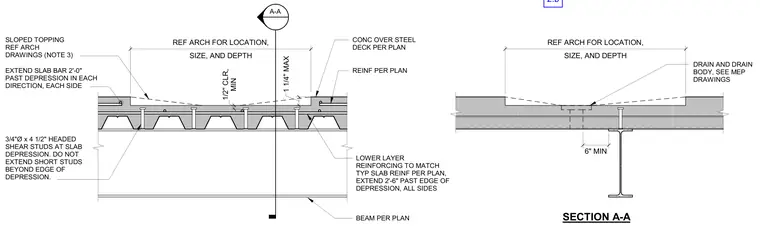

A depressed concrete topping is cast over a steel deck supporting a floor drain and integrating with a structural steel beam below. Three-quarter-inch diameter by four-and-one-half-inch headed shear studs are welded through the steel deck at the slab depression, with short studs restricted from extending beyond the edge of the depression. Lower layer reinforcing matches typical slab reinforcement per plan and extends two feet six inches past the edge of the depression on all sides. Additional slab bars extend two feet zero inches past the depression in each direction on each side. A sloped concrete topping drains toward the drain body as coordinated with mechanical and architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
