A concrete slab on grade bears directly on a concrete foundation wall with panel reinforcement sized per plan. Vertical and horizontal reinforcement utilizes number four bars spaced at eighteen inches on center with a two-inch concrete cover. Glazing sits atop the assembly with dimensions and details sized per architectural plans.

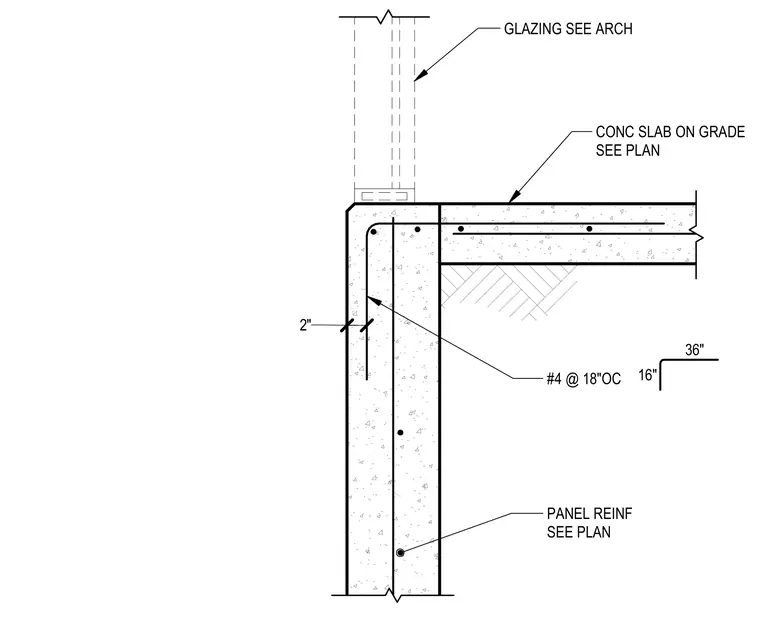

GLAZING SEE ARCH CONC SLAB ON GRADE SEE PLAN #4 @ 18"OC 36" 16" PANEL REINF SEE PLAN 2"
