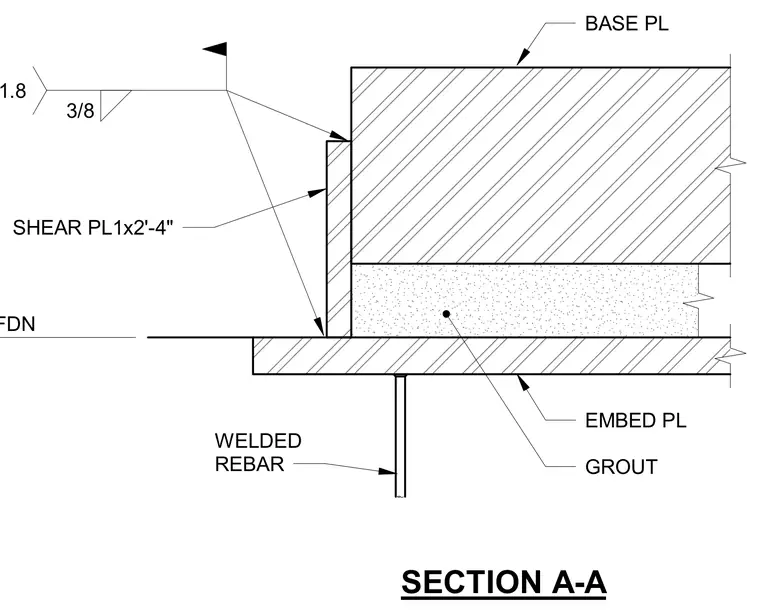

An embed plate bears on a concrete foundation with a layer of grout beneath a base plate. A vertical shear plate is welded to the embed plate with a 3/8-inch fillet weld. Welded rebar anchors extend downward from the embed plate into the concrete foundation.
