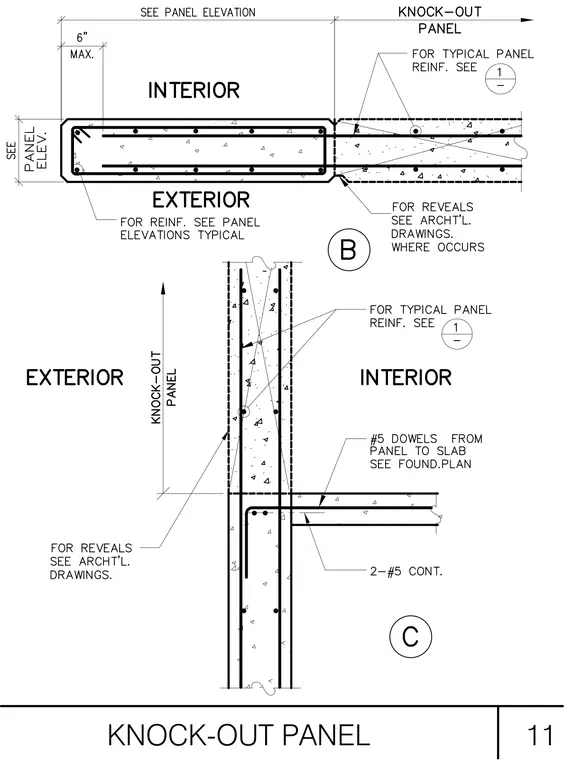

A concrete knock-out panel incorporates reinforcing steel details for both the panel and the adjacent slab. The panel features interior and exterior zones with standard reinforcement specified per panel elevations and detail references. A slab connects to the panel via number five dowels, supplemented by two continuous number five reinforcing bars. Architectural reveals are coordinated per the architectural drawings where applicable.
