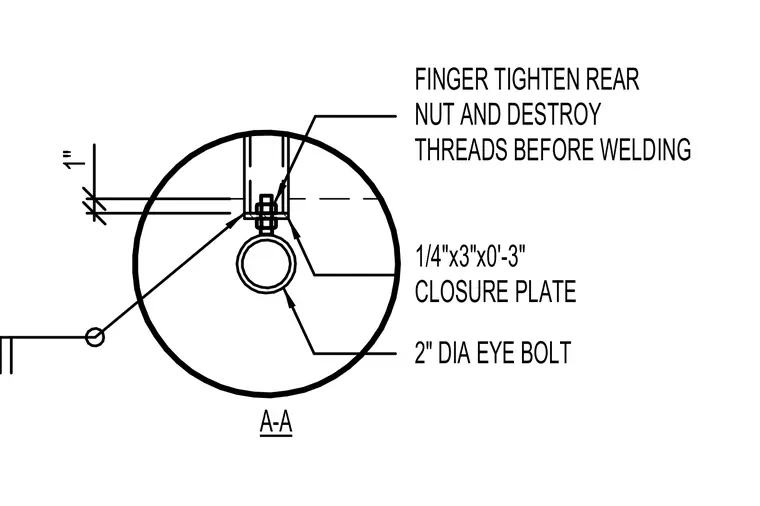

A two-inch diameter eye bolt passes through a quarter-inch by three-inch by three-inch steel closure plate. The rear nut is finger-tightened and its threads are destroyed before welding. The closure plate is set one inch back from the face of the assembly.
1" A-A 1/4"x3"x0'-3" CLOSURE PLATE 2" DIA EYE BOLT FINGER TIGHTEN REAR NUT AND DESTROY THREADS BEFORE WELDING
