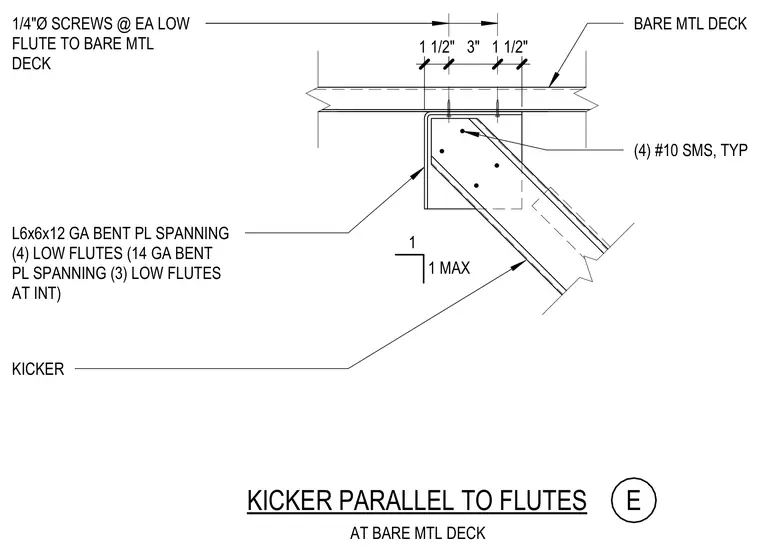

A structural kicker is connected parallel to the flutes of a bare metal deck using a bent plate and self-tapping screws. The assembly consists of a bent plate spanning four low flutes, fastened to the bare metal deck with one-quarter-inch diameter screws at each low flute. The kicker member connects to the bent plate using four number ten sheet metal screws, typically spaced with specific edge clearances.
KICKER PARALLEL TO FLUTES E 1/4"Ø SCREWS @ EA LOW FLUTE TO BARE MTL DECK BARE MTL DECK KICKER (4) #10 SMS, TYP 1 MAX 1 AT BARE MTL DECK L6x6x12 GA BENT PL SPANNING (4) LOW FLUTES (14 GA BENT PL SPANNING (3) LOW FLUTES AT INT) 1 1/2" 3" 1 1/2"
