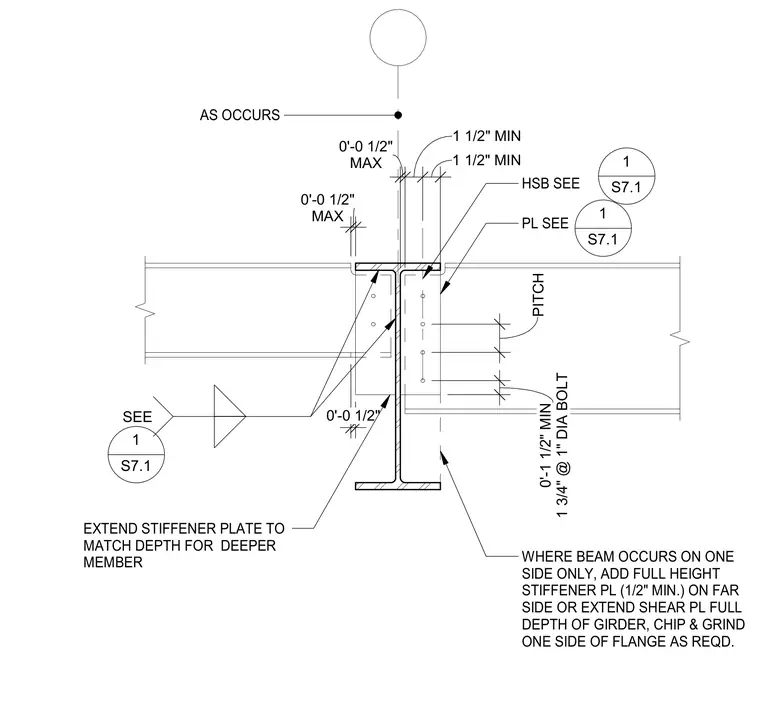

A steel beam frames into a supporting girder web via a shear plate connection using one-inch diameter bolts. Where a beam occurs on one side only, a full-height stiffener plate with a half-inch minimum thickness is added on the far side or the shear plate is extended to the full depth of the girder, requiring one side of the flange to be chipped and ground as necessary. Additional stiffener plates are extended to match the depth for deeper intersecting members. Clearances and edge distances are explicitly dimensioned around the flange and web interfaces.
MAX 0'-0 1/2" 1 1/2" MIN 1 1/2" MIN MAX 0'-0 1/2" 0'-0 1/2" PITCH 1 3/4" @ 1" DIA BOLT 0'-1 1/2" MIN SEE EXTEND STIFFENER PLATE TO MATCH DEPTH FOR DEEPER MEMBER WHERE BEAM OCCURS ON ONE SIDE ONLY, ADD FULL HEIGHT STIFFENER PL (1/2" MIN.) ON FAR SIDE OR EXTEND SHEAR PL FULL DEPTH OF GIRDER, CHIP & GRIND ONE SIDE OF FLANGE AS REQD. PL SEE HSB SEE AS OCCURS 1 S7.1 1 S7.1 1 S7.1
