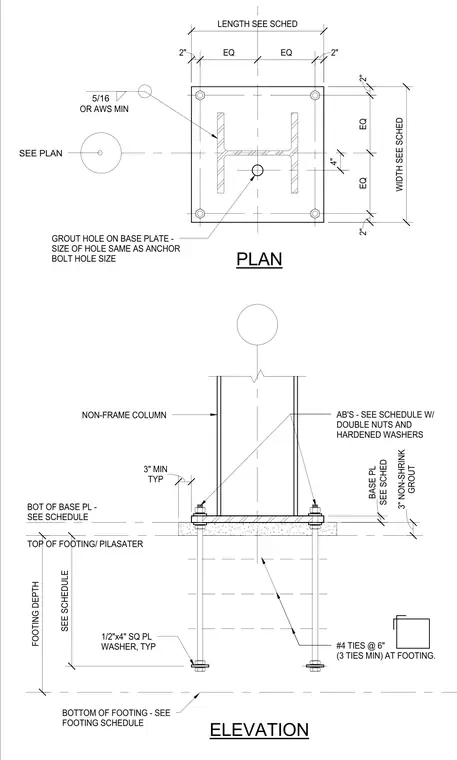

A non-frame structural steel column bears on a base plate set over three inches of non-shrink grout atop a concrete footing or pilaster. Anchor bolts sized per schedule secure the base plate using double nuts and hardened washers, paired with one-half by four inch square plate washers embedded near the bottom of the footing. A four-inch grout hole is provided on the base plate matching the anchor bolt hole size. The concrete footing incorporates number four ties at six inches on center with a minimum of three ties at the footing.
BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/ PILASATER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS SEE PLAN NON-FRAME COLUMN ELEVATION PLAN BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP OR AWS MIN 5/16 TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT FOOTING.
