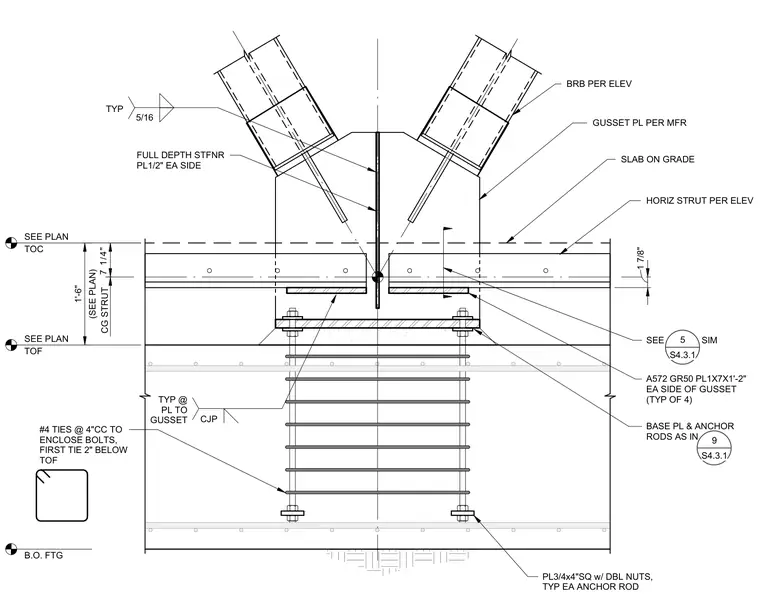

A V-brace connection features buckling-restrained braces framing into a gusset plate. The gusset plate is welded with complete-joint-penetration welds and reinforced by full-depth stiffener plates on each side. A horizontal strut intersects the assembly, and the base plate is secured with anchor rods featuring square plates and double nuts. The concrete footing is reinforced with number four ties spaced at four inches center-to-center enclosing the bolts, with the first tie positioned two inches below the top of footing.
5/16 TYP FULL DEPTH STFNR PL1/2" EA SIDE #4 TIES @ 4"CC TO ENCLOSE BOLTS, FIRST TIE 2" BELOW TOF PL3/4x4"SQ w/ DBL NUTS, TYP EA ANCHOR ROD BASE PL & ANCHOR RODS AS IN SEE SIM HORIZ STRUT PER ELEV SLAB ON GRADE GUSSET PL PER MFR BRB PER ELEV A572 GR50 PL1X7X1'-2" EA SIDE OF GUSSET (TYP OF 4) CJP TYP @ PL TO GUSSET (SEE PLAN) 1'-6" 7 1/4" 5 S4.3.1 9 S4.3.1 CG STRUT B.O. FTG TOF SEE PLAN TOC SEE PLAN 1 7/8"
