Structural · S-G8BDA

Typical Sloped Deck Support

Materials

Elements

About this detail

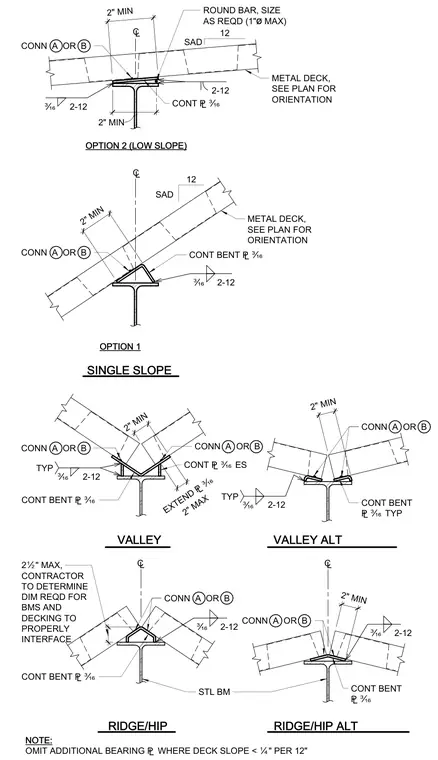

Metal deck bearing and support conditions at sloped roofs are detailed for single slope, valley, and ridge or hip conditions over structural steel beams. Continuous bent plates and flat plates welded with three-sixteenths inch fillet welds provide bearing interfaces for the metal deck. Connection options A or B secure the deck to the supporting members, supplemented by round bars up to one inch in diameter at low slope options. Additional bearing plates are omitted where the deck slope is less than one-quarter inch per twelve inches. The contractor determines required dimensions for beams and decking to properly interface structural steel framing.
