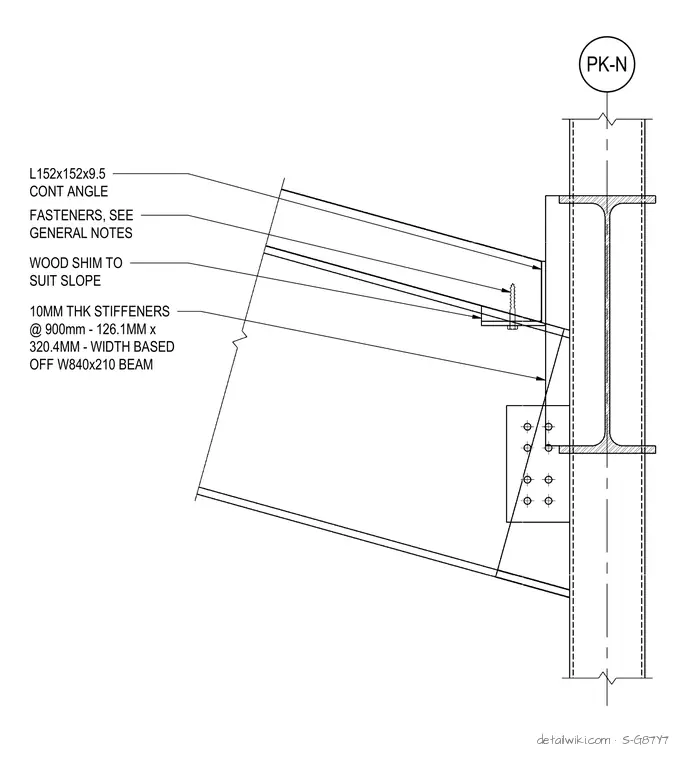

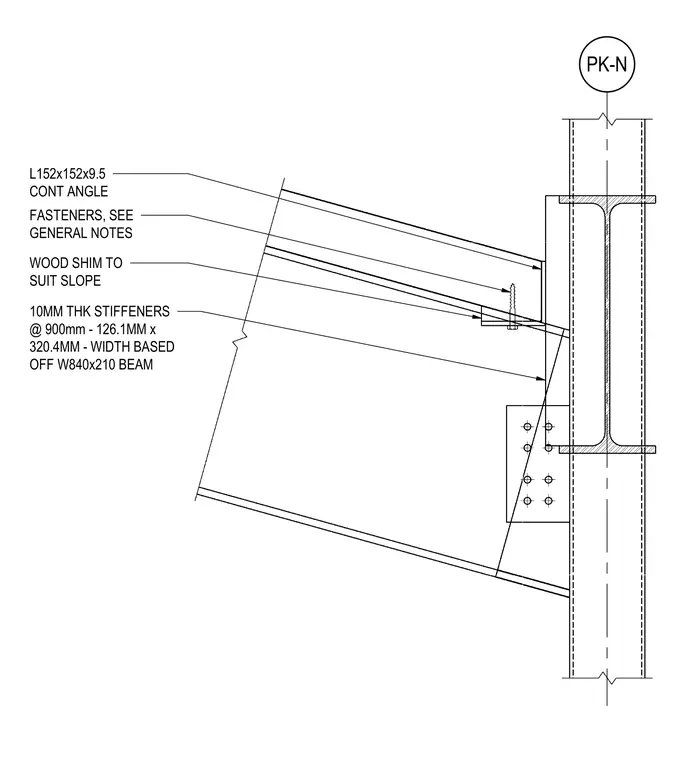

The assembly features a continuous steel angle (L152x152x9.5) and wood shims to suit the slope, supported by a wide flange steel beam (W840x210) equipped with 10mm thick stiffeners. Fasteners secure the angle to the sloping element while a bolted connection ties the main beam to the column flange. This configuration provides robust load transfer for sloped structural framing conditions.
Text on the drawing
PK-N FASTENERS, SEE GENERAL NOTES WOOD SHIM TO SUIT SLOPE 10MM THK STIFFENERS @ 900mm - 126.1MM x 320.4MM - WIDTH BASED OFF W840x210 BEAM L152x152x9.5 CONT ANGLE
