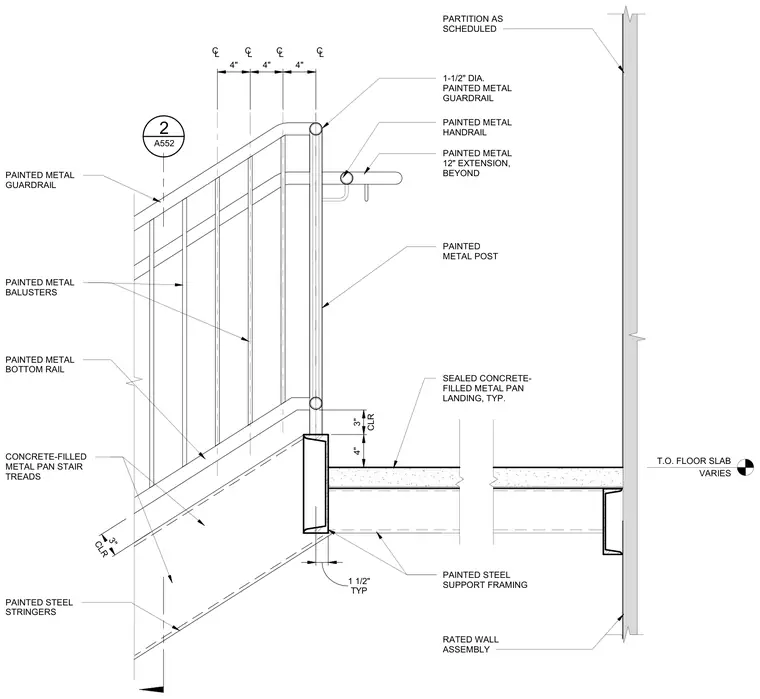

A painted metal guardrail assembly mounts to the concrete-filled metal pan stair landing and structural steel framing. The guardrail consists of a 1-1/2 inch diameter top rail, painted metal posts, vertical balusters spaced at 4 inches on center, and a painted metal bottom rail with a 3-inch clearance above the landing. A separate painted metal handrail features a 12-inch extension beyond the landing. The stair structure utilizes concrete-filled metal pan treads and risers supported by painted steel stringers adjacent to a rated wall assembly.
PAINTED METAL GUARDRAIL PAINTED METAL HANDRAIL PAINTED METAL BALUSTERS CLR 3" PAINTED METAL BOTTOM RAIL PAINTED METAL POST SEALED CONCRETE- FILLED METAL PAN LANDING, TYP. CONCRETE-FILLED METAL PAN STAIR TREADS T.O. FLOOR SLAB VARIES CL PAINTED STEEL STRINGERS PARTITION AS SCHEDULED RATED WALL ASSEMBLY 2 A552 4" 4" 4" CL CL CLR 3" 4" TYP 1 1/2" CL 1-1/2" DIA. PAINTED METAL GUARDRAIL PAINTED STEEL SUPPORT FRAMING PAINTED METAL 12" EXTENSION, BEYOND
