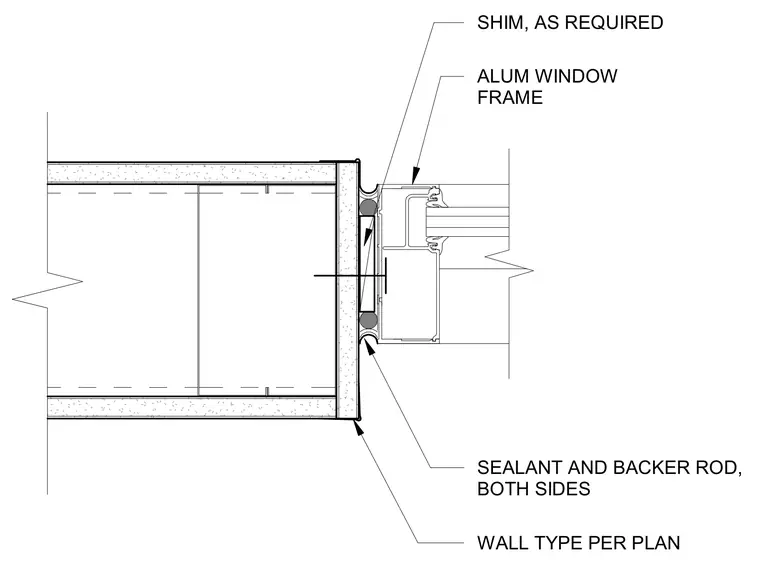

An aluminum window frame connects to the wall type per plan using shims as required for alignment and support. Sealant and backer rod are applied on both sides of the perimeter joint to weatherseal the transition.
ALUM WINDOW FRAME WALL TYPE PER PLAN SEALANT AND BACKER ROD, BOTH SIDES SHIM, AS REQUIRED
