A steel beam featuring flange width Bf and flange thickness Tf connects to hollow structural section columns sized per plan. The connection uses base plates or cap plates secured with three-quarter-inch diameter bolts, with plate thickness matching flange thickness Tf or one-half inch minimum. Three-eighths-inch stiffener plates are provided where columns occur above or omitted depending on location, welded with typical one-quarter-inch fillet welds.

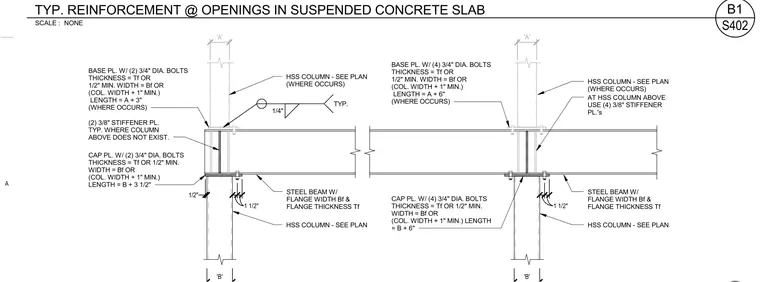

HSS COLUMN - SEE PLAN HSS COLUMN - SEE PLAN STEEL BEAM W/ FLANGE WIDTH Bf & FLANGE THICKNESS Tf HSS COLUMN - SEE PLAN (WHERE OCCURS) STEEL BEAM W/ FLANGE WIDTH Bf & FLANGE THICKNESS Tf BASE PL. W/ (2) 3/4" DIA. BOLTS THICKNESS = Tf OR 1/2" MIN. WIDTH = Bf OR (COL. WIDTH + 1" MIN.) LENGTH = A + 3" (WHERE OCCURS) AT HSS COLUMN ABOVE USE (4) 3/8" STIFFENER PL.'s (2) 3/8" STIFFENER PL. TYP. WHERE COLUMN ABOVE DOES NOT EXIST. 'A' 1/4" TYP. 'B' 'B' 'A' 1 1/2" 1 1/2" 1/2" 1 1/2" 1 1/2" CAP PL. W/ (2) 3/4" DIA. BOLTS THICKNESS = Tf OR 1/2" MIN. WIDTH = Bf OR (COL. WIDTH + 1" MIN.) LENGTH = B + 3 1/2" CAP PL. W/ (4) 3/4" DIA. BOLTS THICKNESS = Tf OR 1/2" MIN. WIDTH = Bf OR (COL. WIDTH + 1" MIN.) LENGTH = B + 6" BASE PL. W/ (4) 3/4" DIA. BOLTS THICKNESS = Tf OR 1/2" MIN. WIDTH = Bf OR (COL. WIDTH + 1" MIN.) LENGTH = A + 6" (WHERE OCCURS) HSS COLUMN - SEE PLAN (WHERE OCCURS) A SCALE : NONE S402 TYP. REINFORCEMENT @ OPENINGS IN SUSPENDED CONCRETE SLAB B1
