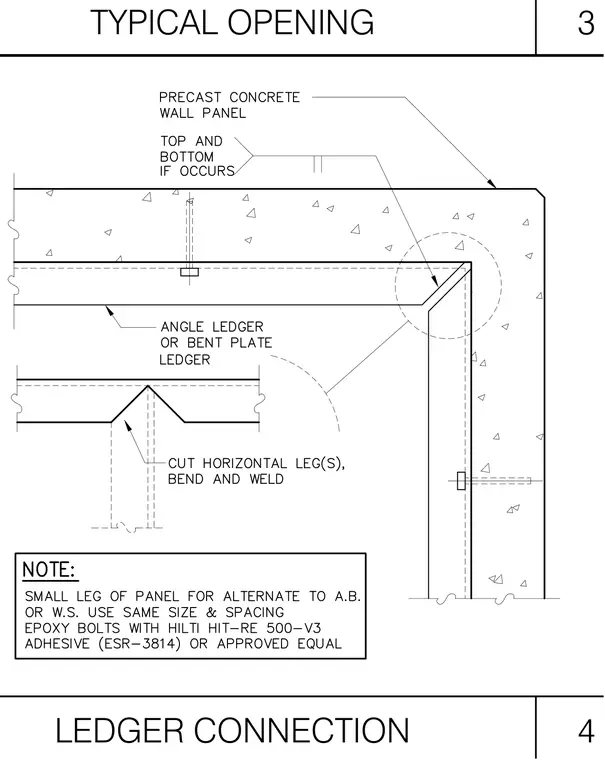

An angle ledger or bent plate ledger supports precast concrete wall panels at structural openings. The horizontal legs are cut, bent, and welded as detailed. Epoxy bolts utilize Hilti HIT-RE 500-V3 adhesive with ESR-3814 or approved equal, maintaining the same size and spacing for alternate anchor bolt or welded stud conditions.
