A 600S250-54 slotted slip track connects to the overhead structural beam or concrete slab using two powder-actuated fasteners at sixteen inches on center per structural notes, or two number twelve screws at sixteen inches on center when attaching to a roof deck. Steel studs insert into the slip track with a vertical deflection gap ranging from a one-half inch minimum to a three-quarter inch maximum. Typical jamb connections match the stud requirements at the jamb condition. The assembly accommodates vertical deflection of the overhead structure without transferring dead load to the non-load-bearing wall below.

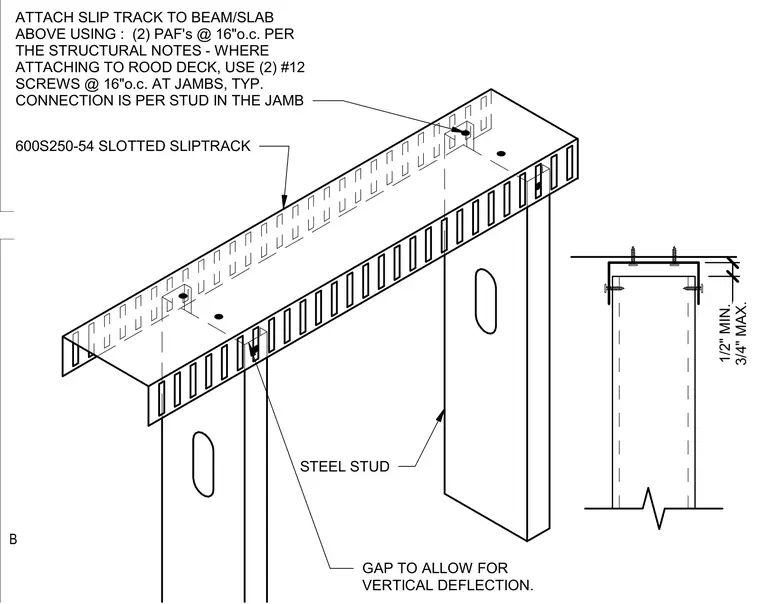

ATTACH SLIP TRACK TO BEAM/SLAB ABOVE USING : (2) PAF's @ 16"o.c. PER THE STRUCTURAL NOTES - WHERE ATTACHING TO ROOD DECK, USE (2) #12 SCREWS @ 16"o.c. AT JAMBS, TYP. CONNECTION IS PER STUD IN THE JAMB 600S250-54 SLOTTED SLIPTRACK STEEL STUD GAP TO ALLOW FOR VERTICAL DEFLECTION. 3/4" MAX. 1/2" MIN. B
