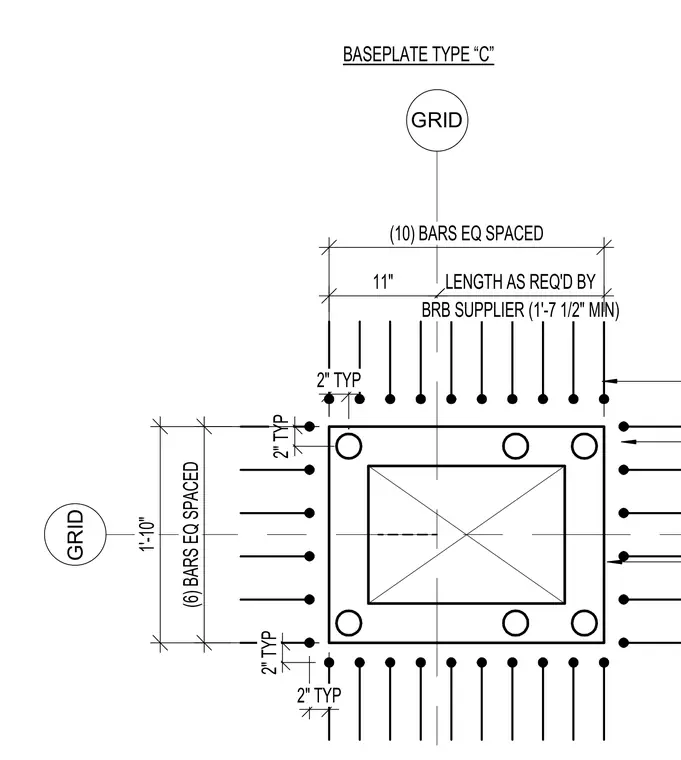

Baseplate Type C features a rectangular steel plate centered on structural grid lines with surrounding reinforcing steel dowels. The assembly includes six bars spaced evenly along the one-foot ten-inch vertical dimension and ten bars spaced evenly along the horizontal dimension with an eleven-inch spacing offset. The reinforcing bars extend to a minimum length of one foot seven and one-half inches as required by the buckling-restrained braced frame supplier. Edge clearances measure two inches typical on all sides.
BASEPLATE TYPE “C” 2" TYP GRID 11" BRB SUPPLIER (1'-7 1/2" MIN) LENGTH AS REQ'D BY GRID 2" TYP 1'-10" (6) BARS EQ SPACED (10) BARS EQ SPACED 2" TYP 2" TYP
