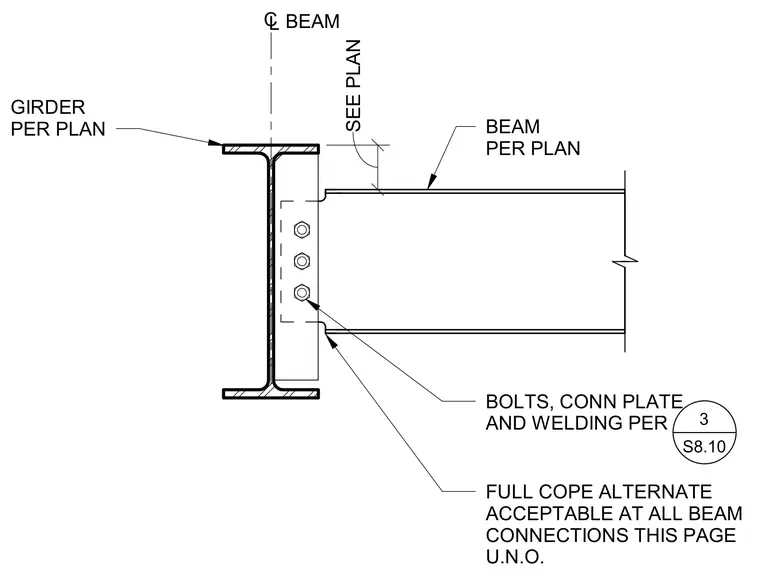

A steel beam frames into a supporting girder per plan with a connection plate and three bolts. The connection plate is welded to the girder web, and the beam top flange features a cope sized per plan. A full cope alternate is acceptable at all beam connections on this page unless noted otherwise.
C L BEAM BEAM PER PLAN BOLTS, CONN PLATE AND WELDING PER GIRDER PER PLAN SEE PLAN FULL COPE ALTERNATE ACCEPTABLE AT ALL BEAM CONNECTIONS THIS PAGE U.N.O. 3 S8.10
