Structural · S-G7E86

Deck Depression Detail Up to 6 Inches

Materials

Elements

Beams Floors / Slabs Decks Connections / Plates Reinforcing

About this detail

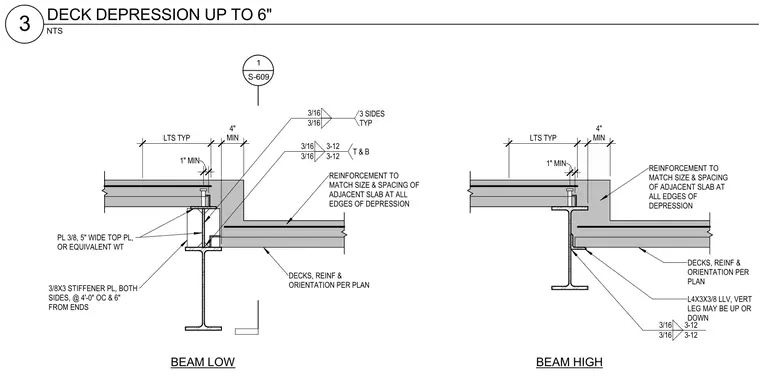

A low steel beam supports a stepped concrete slab depression framed with three-eighths-inch by five-inch top plate and three-eighths-inch by three-inch stiffener plates welded to both sides at four feet on center and six inches from ends using three-sixteenths-inch welds. A high steel beam supports the adjacent slab level utilizing an L4x3x3/8 long leg vertical angle welded with three-sixteenths-inch welds. Reinforcement in top and bottom of the slab matches the size and spacing of the adjacent slab at all edges of the depression, with decks, reinforcing, and orientation sized per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
