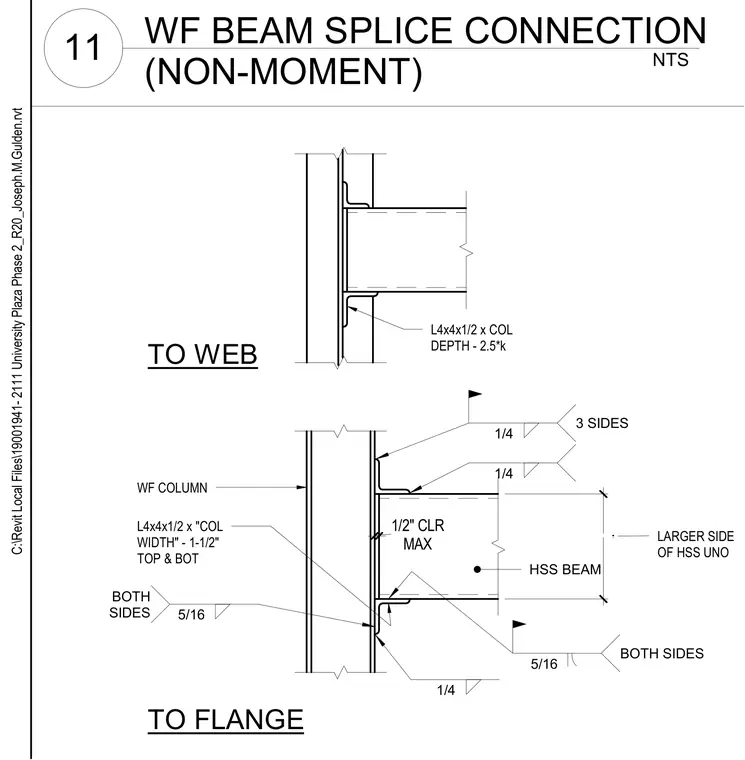

An HSS beam connects to a wide-flange column using structural angles welded to both the web and flanges. The top and bottom flange connections use L4x4x1/2 angles sized to the column width minus one and one-half inches, welded with five-sixteenth inch fillet welds on both sides. The web connection uses L4x4x1/2 angles sized to the column depth minus two and one-half times the k-distance. A maximum clearance of one-half inch is maintained between the members. Additional quarter-inch fillet welds are specified on three sides where indicated.
L4x4x1/2 x "COL WIDTH" - 1-1/2" TOP & BOT WF COLUMN L4x4x1/2 x COL DEPTH - 2.5*k HSS BEAM TO FLANGE TO WEB LARGER SIDE OF HSS UNO . MAX 1/2" CLR 5/16 BOTH SIDES 5/16 BOTH SIDES 1/4 1/4 3 SIDES 1/4 C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_Joseph.M.Gulden.rvt NTS 11 WF BEAM SPLICE CONNECTION (NON-MOMENT)
