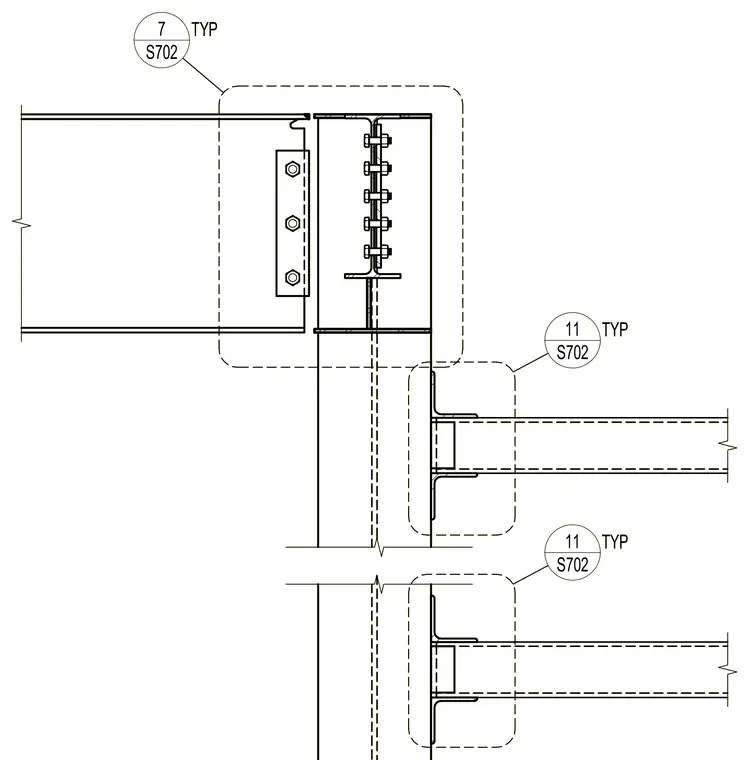

Structural steel connection detailing the transition from a penthouse to a screenwall assembly. The framing utilizes wide flange beams connected via shear tabs and bolted channels. Detail reference callouts direct the builder to related intersection conditions.
