Grating Angle Support at Concrete or Steel Edge

Materials

Connections

Welded Connection Shear Stud / Composite

About this detail

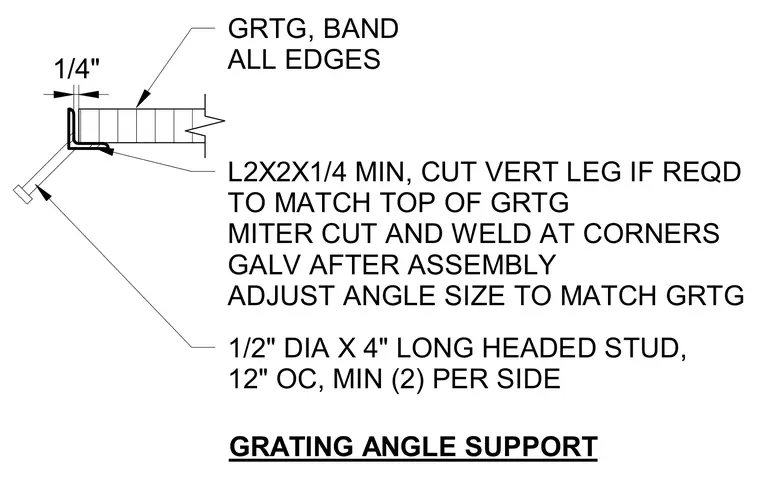

A structural steel angle minimum two by two by one-quarter inch supports the perimeter of a quarter-inch banded metal grating. The vertical leg of the angle is cut as required to match the top surface of the grating, with corners mitered, welded, and galvanized after assembly. The support angle is anchored with one-half-inch diameter by four-inch long headed studs spaced at twelve inches on center, with a minimum of two studs per side.
