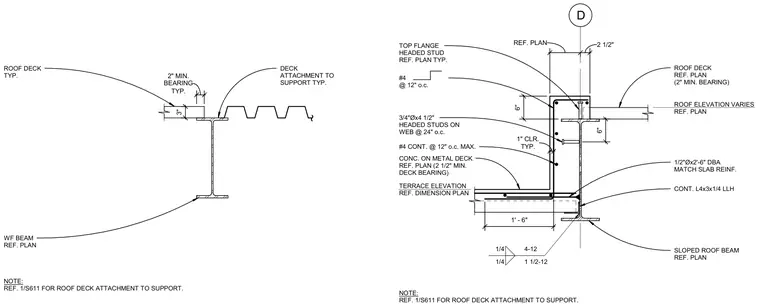

A concrete terrace step and slab assembly bears upon a sloped wide-flange steel beam. The concrete fill on metal deck features a continuous L4x3x1/4 angle at the base and is tied with three-quarter-inch diameter by four-and-a-half-inch headed studs welded to the beam web at twenty-four inches on center. Additional anchorage is provided by half-inch diameter by two-foot-six-inch deformed bar anchors matching the slab reinforcement. Number four rebar runs continuously at twelve inches on center with one-inch typical clearance. Top flange headed studs and roof deck connections are detailed per reference plan and sheet S611.
D 6" 1' - 6" REF. PLAN 2 1/2" 6" TYP. 1" CLR. ROOF DECK REF. PLAN (2" MIN. BEARING) ROOF ELEVATION VARIES REF. PLAN 1/2"Øx2'-6" DBA MATCH SLAB REINF. CONT. L4x3x1/4 LLH SLOPED ROOF BEAM REF. PLAN TOP FLANGE HEADED STUD REF. PLAN TYP. #4 @ 12" o.c. 3/4"Øx4 1/2" HEADED STUDS ON WEB @ 24" o.c. #4 CONT. @ 12" o.c. MAX. CONC. ON METAL DECK REF. PLAN (2 1/2" MIN. DECK BEARING) TERRACE ELEVATION REF. DIMENSION PLAN 1/4 1 1/2-12 1/4 4-12 NOTE: REF. 1/S611 FOR ROOF DECK ATTACHMENT TO SUPPORT. DECK ATTACHMENT TO SUPPORT TYP. ROOF DECK TYP. NOTE: REF. 1/S611 FOR ROOF DECK ATTACHMENT TO SUPPORT. TYP. 2" MIN. BEARING 3" WF BEAM REF. PLAN
