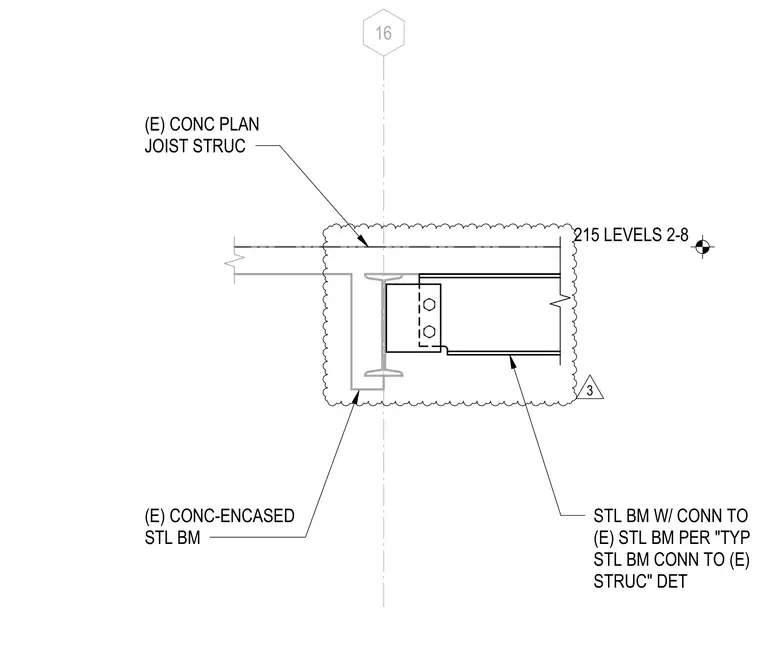

A new steel beam connects to an existing concrete-encased steel beam using a bolted framing connection. The supporting member is an existing concrete-encased steel beam located beneath a concrete pan joist structure at levels 2 through 8. Connection details follow the typical steel beam connection standard referenced in the drawings.
16 STL BM W/ CONN TO (E) STL BM PER "TYP STL BM CONN TO (E) STRUC" DET (E) CONC-ENCASED STL BM (E) CONC PLAN JOIST STRUC 215 LEVELS 2-8 3
