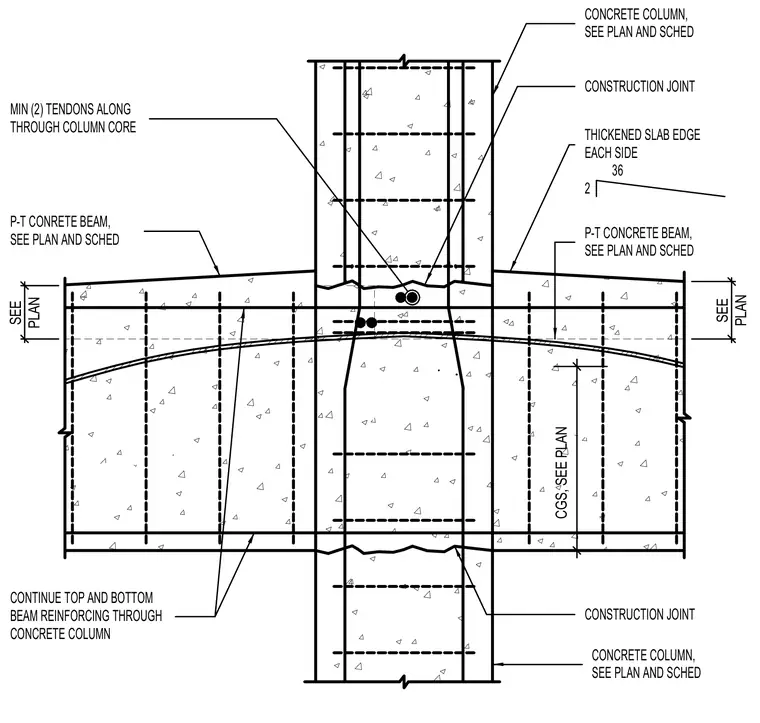

Post-tensioned concrete beams frame continuously through a reinforced concrete column with top and bottom beam reinforcing continuing directly through the column core. At least two post-tensioning tendons run straight through the column core, while profiled tendons pass continuously through the beam spans. Construction joints are located at the top and bottom of the column connection interface. The assembly includes a thickened slab edge sized per plan on each side of the column.
CONSTRUCTION JOINT CONSTRUCTION JOINT CONCRETE COLUMN, SEE PLAN AND SCHED MIN (2) TENDONS ALONG THROUGH COLUMN CORE CONTINUE TOP AND BOTTOM BEAM REINFORCING THROUGH CONCRETE COLUMN P-T CONCRETE BEAM, SEE PLAN AND SCHED P-T CONRETE BEAM, SEE PLAN AND SCHED CONCRETE COLUMN, SEE PLAN AND SCHED EACH SIDE 36 2 THICKENED SLAB EDGE CGS, SEE PLAN SEE PLAN SEE PLAN
