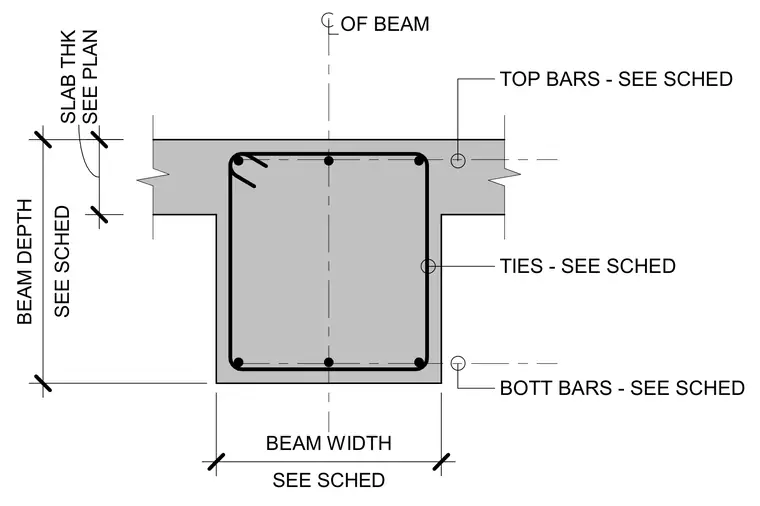

A cast-in-place concrete beam and monolithic slab assembly features designated reinforcing bar locations. Beam dimensions for width and depth are sized per the structural schedule, with slab thickness coordinated per architectural and structural plans. Top bars and bottom longitudinal reinforcement are positioned alongside closed perimeter ties. The centerline of the beam establishes the symmetrical layout for the internal reinforcing cage.
OF BEAM TOP BARS - SEE SCHED TIES - SEE SCHED BOTT BARS - SEE SCHED SEE SCHED BEAM WIDTH SEE PLAN SLAB THK SEE SCHED BEAM DEPTH
