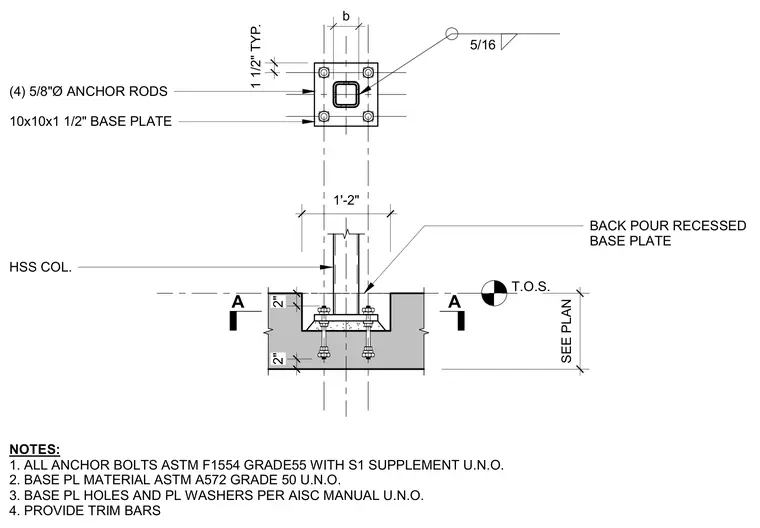

An HSS column connects to a square base plate measuring ten by ten by one and one-half inches, welded with a five-sixteenths fillet weld. Four five-eighths-inch-diameter anchor rods secure the assembly into a back pour recessed base plate pocket sized per plan. General notes specify ASTM F1554 Grade 55 anchor bolts with S1 supplement, ASTM A572 Grade 50 base plate material, and AISC manual compliance for base plate holes and plate washers.
b 5/16 (4) 5/8"Ø ANCHOR RODS 1 1/2" TYP. NOTES: 1. ALL ANCHOR BOLTS ASTM F1554 GRADE55 WITH S1 SUPPLEMENT U.N.O. 2. BASE PL MATERIAL ASTM A572 GRADE 50 U.N.O. 3. BASE PL HOLES AND PL WASHERS PER AISC MANUAL U.N.O. 4. PROVIDE TRIM BARS 10x10x1 1/2" BASE PLATE HSS COL. A A 1'-2" 2" BACK POUR RECESSED BASE PLATE SEE PLAN T.O.S. 2"
