Structural · S-G6A9M

Column Base Plate Square Anchor Rod Pattern Inside Column

Materials

Steel

Elements

Columns Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection

About this detail

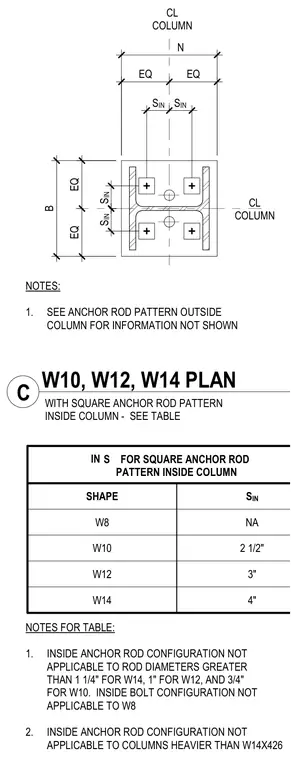

Square anchor rod pattern positioned inside the column profile for wide flange shapes including W10, W12, and W14 columns. The plan view defines critical dimensions including equal spacings and specific inner rod offsets relative to the column centerlines. Accompanying tables and notes outline applicability criteria and restrictions based on anchor rod diameters, shape sizes, and column weights.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
