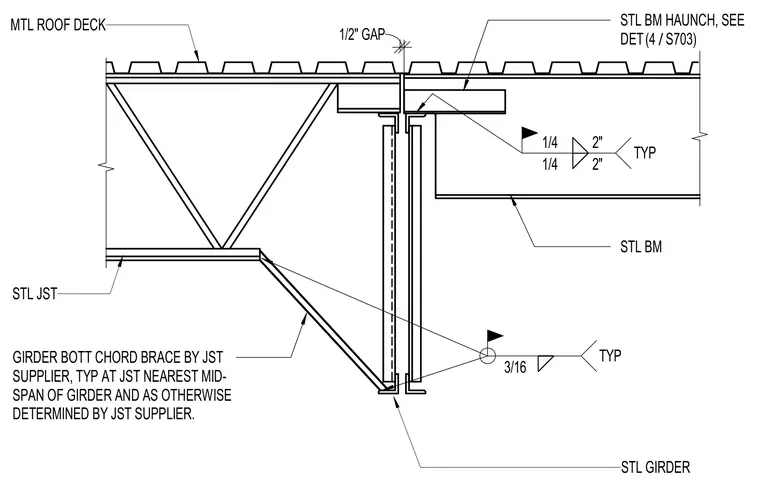

A steel joist bottom chord brace connects to a steel girder with a three-sixteenths inch weld typically provided by the joist supplier. The steel joist supports a metal roof deck and frames adjacent to a steel beam with a one-half inch gap. A steel beam haunch is detailed per detail 4 on sheet S703, utilizing quarter-inch fillet welds at two-inch intervals typically. A steel girder supports the vertical framing with associated bottom chord bracing at the mid-span of the girder.
GIRDER BOTT CHORD BRACE BY JST SUPPLIER, TYP AT JST NEAREST MID- SPAN OF GIRDER AND AS OTHERWISE DETERMINED BY JST SUPPLIER. STL GIRDER MTL ROOF DECK STL JST 3/16 TYP STL BM HAUNCH, SEE DET STL BM 1/4 1/4 2" 2" TYP 1/2" GAP / (4 S703)
